Talos All-in-One Portable Power Station | 500W / 1200W

The Talos Series combines a built-in LiFePO4 battery, a pure sine wave inverter and solar / mains charging in a compact all-in-one power station. Choose from three models for home backup, lighting, fans, device charging and portable power within the selected model’s output rating.

Key Features

Integrated battery and inverter: 500W models with 1005Wh or 1920Wh battery energy, or a 1200W model with 2010Wh battery energy.
Pure sine wave 230VAC output with two universal AC outlets, plus 5V DC, USB and Type-C outputs.
Charge from mains AC or solar PV via the XT90 input; maximum PV charging input is 500W or 600W, depending on model.
Grade A LiFePO4 cells with intelligent BMS, 95% depth of discharge and specified cycle life above 8000 cycles under the stated test conditions.
Color LCD displays charge level, input / output power, battery voltage and operating status.
Built-in Bluetooth and Wi-Fi with Portable Energy app access, remote output control and charging-power adjustment.
Portable or wall-mounted installation, with mounting accessories included.

Technical Specifications by Model

Specification	SCTL-500W-1000Wh	SCTL-500W-1920Wh	SCTL-1200W-2000Wh
AC Output
Rated AC output power	500VA / 500W	500VA / 500W	1200VA / 1200W
Rated AC output voltage	230VAC	230VAC	230VAC
AC output voltage range	220–240VAC	220–240VAC	220–240VAC
Rated AC output frequency	50 / 60Hz	50 / 60Hz	50 / 60Hz
AC conversion efficiency	≥92%	≥92%	≥94%
Waveform	Pure sine wave	Pure sine wave	Pure sine wave
Instantaneous peak capability	2 × rated output; duration not specified	2 × rated output; duration not specified	2 × rated output; duration not specified
AC outlets	2 universal outlets	2 universal outlets	2 universal outlets
AC Input and Charging
Nominal AC input voltage	230VAC	230VAC	230VAC
AC input voltage range	90–280VAC	90–280VAC	90–280VAC
Rated AC input frequency	50Hz	50Hz	50Hz
AC input frequency range	45–65Hz	45–65Hz	45–65Hz
Maximum AC charging power	500W	500W	1200W
Nominal AC input current	5A	5A	10A
Maximum battery charging current	160A	160A	190A
DC and USB Outputs
5V DC output sockets	2	2	2
USB outputs	2 USB ports + 1 USB-C port	2 USB ports + 1 USB-C port	2 USB ports + 1 USB-C port
Additional Type-C output	1 port; 20W fast charging specified in manual	1 port; 20W fast charging specified in manual	1 port; 20W fast charging specified in manual
Output control	Independent AC and DC output switches	Independent AC and DC output switches	Independent AC and DC output switches
Solar PV Input
PV input voltage range	12–60VDC	12–60VDC	12–60VDC
Maximum PV input voltage	60VDC	60VDC	60VDC
Maximum PV input current	18A	18A	20A
Maximum PV input power	500W	500W	600W
PV input connector	XT90	XT90	XT90
Built-in Battery
Battery chemistry	LiFePO4 (lithium iron phosphate)	LiFePO4 (lithium iron phosphate)	LiFePO4 (lithium iron phosphate)
Cell grade	Grade A, as stated in specification sheet	Grade A, as stated in specification sheet	Grade A, as stated in specification sheet
Rated battery energy	1005Wh	1920Wh	2010Wh
Rated battery capacity	314Ah	600Ah	314Ah
Nominal internal battery voltage	3.2V	3.2V	6.4V
Battery discharge voltage range	2.5–3.65V	2.5–3.65V	5–7.3V
Standard battery charging current	80A	80A	100A
Maximum battery discharging current	160A	160A	190A
Depth of discharge	95%	95%	95%
Specified cycle life	>8000 cycles at 25 ±2°C, 0.5C, EOL 80%	>8000 cycles at 25 ±2°C, 0.5C, EOL 80%	>8000 cycles at 25 ±2°C, 0.5C, EOL 80%
Battery management	Built-in intelligent BMS	Built-in intelligent BMS	Built-in intelligent BMS
Display, Connectivity and Environment
Display	Color LCD	Color LCD	Color LCD
Displayed status	SOC, battery voltage, AC voltage / frequency, input / output power, DC status, charging indication and fault codes	SOC, battery voltage, AC voltage / frequency, input / output power, DC status, charging indication and fault codes	SOC, battery voltage, AC voltage / frequency, input / output power, DC status, charging indication and fault codes
Connectivity	Built-in Bluetooth and Wi-Fi	Built-in Bluetooth and Wi-Fi	Built-in Bluetooth and Wi-Fi
App	Portable Energy; Android and iOS download QR codes provided in manual	Portable Energy; Android and iOS download QR codes provided in manual	Portable Energy; Android and iOS download QR codes provided in manual
Bluetooth function	Device discovery / pairing and local operating-status access	Device discovery / pairing and local operating-status access	Device discovery / pairing and local operating-status access
Wi-Fi app control	Remote AC / DC output switching, power on / off and charging-power adjustment	Remote AC / DC output switching, power on / off and charging-power adjustment	Remote AC / DC output switching, power on / off and charging-power adjustment
Installation options	Portable / wall-mounted	Portable / wall-mounted	Portable / wall-mounted
Ingress protection	IP20	IP20	IP20
Specified charging temperature	0°C to +50°C	0°C to +50°C	0°C to +50°C
Specified discharging temperature	−20°C to +60°C	−20°C to +60°C	−20°C to +60°C
Storage temperature	−20°C to +60°C	−20°C to +60°C	−20°C to +60°C
Dimensions and Packing
Unit dimensions (width × height × depth)	235 × 325 × 145mm	278 × 373 × 145mm	235 × 325mm (width × height); depth to be confirmed
Net weight (packing list)	10kg	15kg	17.3kg
Gross weight (packing list)	11.5kg	16kg	19kg
Carton dimensions (L × W × H)	395 × 305 × 215mm	445 × 350 × 215mm	395 × 300 × 275mm
Quantity per carton	1	1	1
Carton volume (listed)	0.026m³	0.033m³	0.032m³

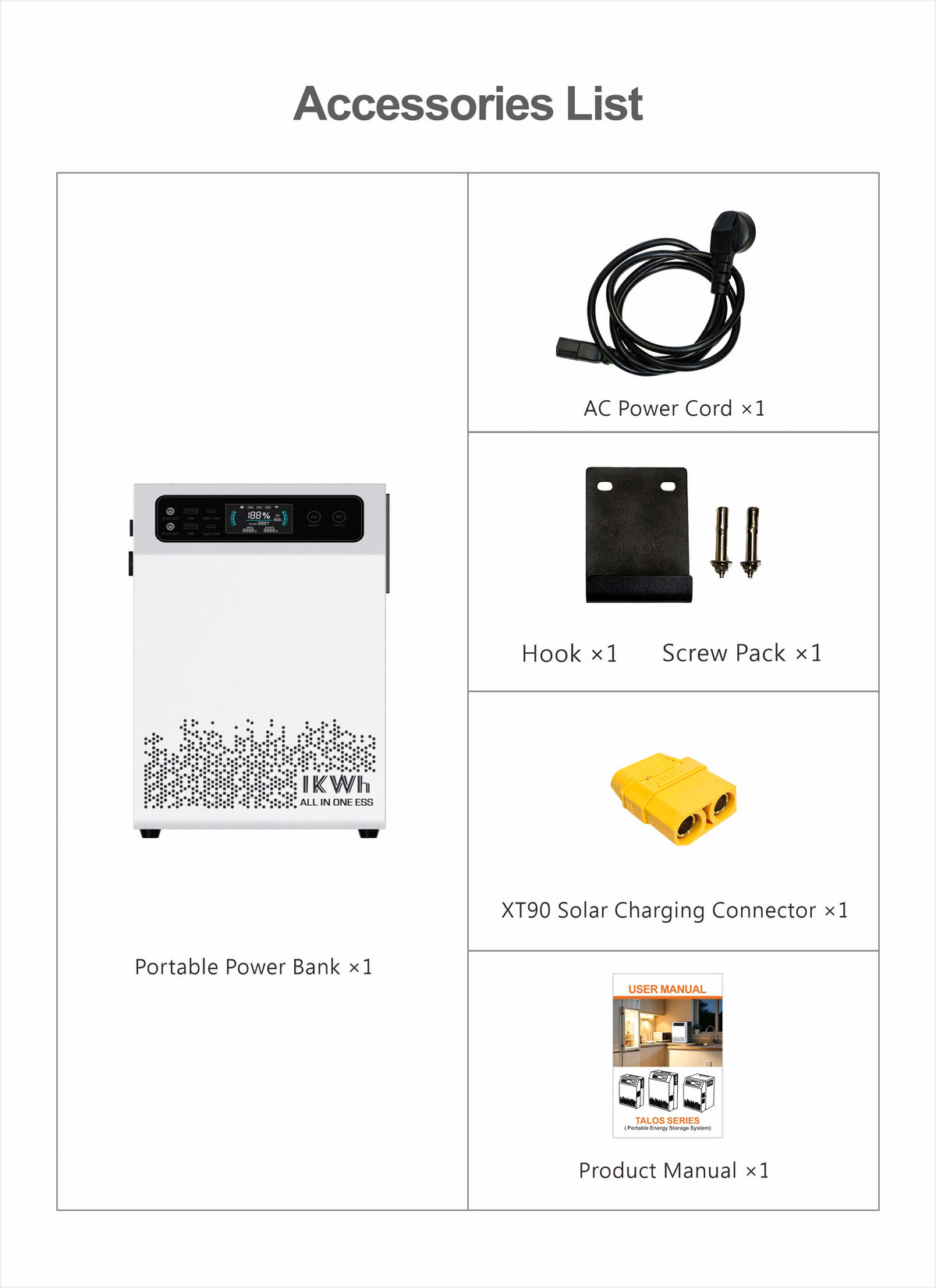

Included Accessories

1 × portable power station with built-in battery
1 × AC power cord
1 × mounting hook
1 × screw pack
1 × XT90 terminal
1 × product manual

Charging and Operation

Mains charging: connect the supplied AC power cord to the AC input. The charging display activates and charging stops automatically at 100% capacity.
Solar charging: connect compatible solar panels to the XT90 PV input. Charging power varies with sunlight; remain within the model’s stated voltage, current and power limits.
Press and hold the AC / power button for about 2 seconds to start the unit. Briefly press the AC button to switch AC output; use the DC button to control DC / USB / Type-C output.
For app setup, use the Android or iOS QR code in the supplied manual, register / log in, add the device using Bluetooth, then configure Wi-Fi for remote control.
The LCD shows fault codes for battery, PV input, AC supply, inverter and DC-side conditions. Refer to the manual for troubleshooting.

Use and Storage Notes

Battery energy (Wh) and AC power (W) are different ratings. Model names use nominal 1000Wh / 2000Wh labels; the specified battery energies are 1005Wh / 2010Wh.
The stated 3.2V / 6.4V values describe the internal battery system; this is an integrated power station, not a separate 24V / 48V battery inverter.
IP20 is intended for dry use. Keep the unit protected from water and keep the cooling vents unobstructed.
The manual recommends an optimal charging environment of 20–30°C and an acceptable range of 0–45°C. The technical specification lists 0–50°C for charging. Do not charge below 0°C.
For storage longer than one month, leave the battery at 50–60% charge, turn outputs off, store in a cool dry place and top up every 90 days.
Cycle life is a manufacturer specification at 25 ±2°C, 0.5C and an end-of-life threshold of 80% capacity; it is not a stated warranty duration.

Dimensions to Confirm

The SCTL-1200W-2000Wh dimension drawing lists a depth of 233mm, while the parameter tables list 333mm. Final unit depth must be confirmed before ordering. Net weight, gross weight and carton size in this listing follow the specification sheet’s packing-details table, which explicitly separates net and gross weights.
