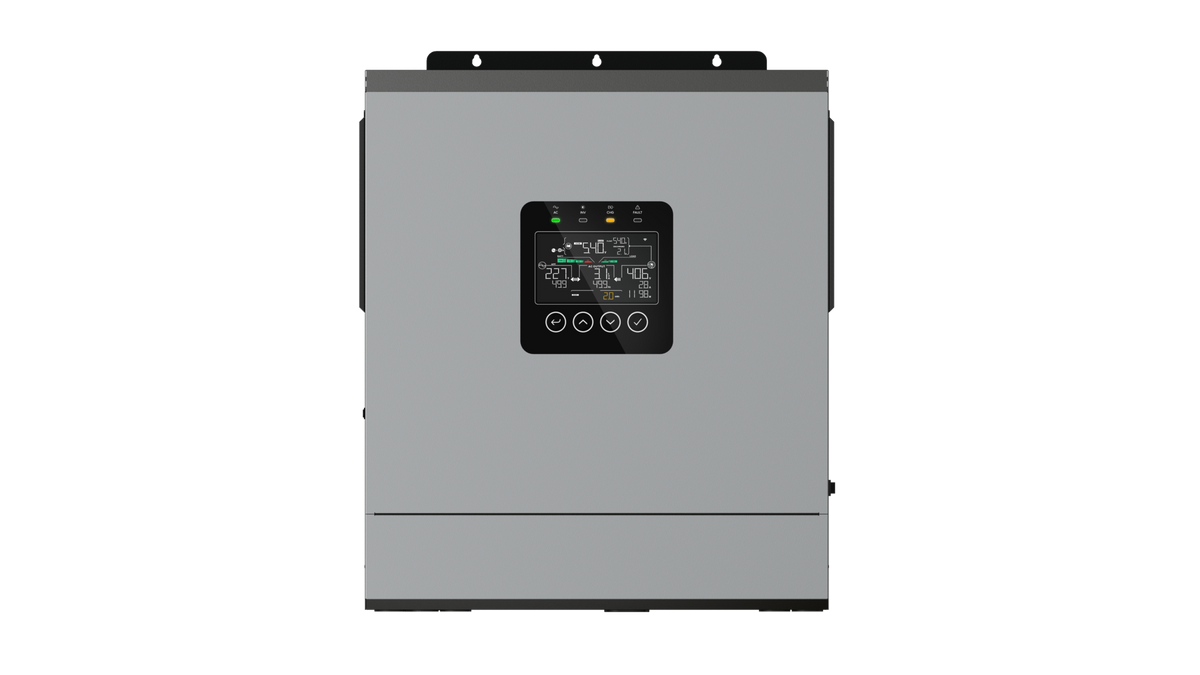

Choose the MPPT solar inverter model that matches your power requirements and battery system. This series offers rated inverter outputs from 3.6kW to 12kW, with 24V or 48V battery configurations. Each model combines pure sine wave AC output, MPPT solar charging and a UPS function for solar self-consumption and backup power.
Series Features
- Pure sine wave output and power factor 1.
- Compatible with lithium and lead-acid batteries; CAN / RS485 BMS communication.
- Supports operation with or without a battery, subject to input power and operating conditions.
- LCD display, IP21 protection and optional Wi-Fi remote monitoring.
- Dual MPPT is available on the 12kW model; up to nine parallel units are supported by the 6.5kW P6.5 model.
- Dual AC outputs are provided on S3.6D, P6.5 and S12.0; dual AC output is optional on S5.0.
Model Comparison
| Specification |
PV5000-24 S3.6D |
PV9000-24 S5.0 |
PV9000-48 P6.5 |
PV15000-48 S12.0 |
| Rated inverter output |
3.6kW / 3.6kVA |
5kW / 5kVA |
6.5kW / 6.5kVA |
12kW / 12kVA |
| Nominal battery voltage |
24V |
24V |
48V |
48V |
| Battery input voltage range |
20–30VDC |
20–30VDC |
40–60VDC |
40–60VDC |
| Maximum PV input power |
5000W |
9000W |
9000W |
15000W total; 9000W with one input |
| Solar charger |
MPPT |
MPPT |
MPPT |
Dual MPPT |
| Maximum PV input current |
18A |
27A |
27A |
27A + 27A |
| MPPT operating voltage range |
40–450VDC |
60–450VDC |
60–450VDC |
60–450VDC |
| PV start-up voltage |
60VDC |
80VDC |
80VDC |
80VDC |
| Maximum PV open-circuit voltage |
500VDC |
500VDC |
500VDC |
500VDC |
| Maximum PV / AC / combined charging current |
100A / 100A / 100A |
160A / 160A / 160A |
120A / 120A / 120A |
160A / 160A / 160A |
| AC outputs |
2 |
Dual AC output optional |
2 |
2 |
| Parallel operation |
Not supported |
Not supported |
Up to 9 units |
Not supported |
| Battery-only output reference |
3000W at 21–24V; 3600W at 26V |
4000W at 25V |
6000W at 50V; curve reaches 6500W at about 55V |
10000W at 50V |
| Surge power |
7.2kVA |
10kVA |
12kVA |
24kVA |
| Maximum battery-mode efficiency |
92% at 24V |
93.5% at 24V |
94% at 48V |
94% at 48V |
| Maximum AC bypass current |
20A |
40A at 25°C |
40A at 25°C |
70A at 25°C |
| Wi-Fi monitoring |
Optional |
Optional |
Optional |
Optional |
| Net / gross weight |
6.2 / 7.3kg |
8.4 / 9.5kg |
8.4 / 9.5kg |
14.9 / 16.5kg |
| Package dimensions (L × W × H) |
518 × 342 × 170mm |
490 × 394 × 176mm |
490 × 394 × 176mm |
594 × 500 × 210mm |
Selection notes: Rated power is total inverter AC output. PV input ratings are separate. Battery-only output can be lower and varies with battery voltage. Check the model-specific operating notes below. The listed package dimensions are shipping carton dimensions.
Detailed Specifications by Model

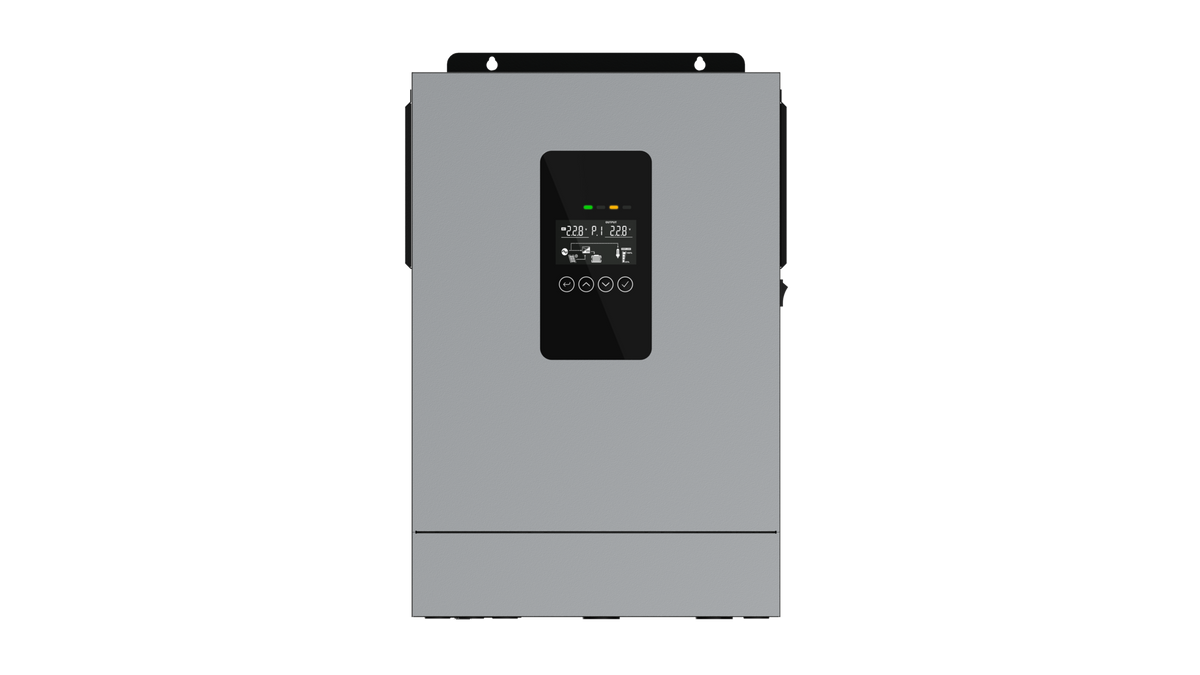

3.6kW 24V Dual-Output MPPT Solar Inverter | PV5000-24 S3.6D
Model and Output
| Model |
PV5000-24 S3.6D |
| Rated inverter output |
3600VA / 3600W (3.6kW total) |
| AC outputs |
2 |
| Phase configuration |
Single phase (L + N + PE) |
| Output waveform |
Pure sine wave |
| Power factor |
1 |
| Selectable output voltage |
208 / 220 / 230 / 240VAC |
| Output frequency |
50 / 60Hz ±0.1% |
| Rated AC output current |
15.7A at 230V (nameplate) |
| Surge power |
7.2kVA |
| Transfer time |
10ms (APP / UPS mode); 20ms (GEN mode) |
| Overload capability in battery mode |
60 seconds at 102–110% load; 10 seconds at 110–200% load |
| Maximum efficiency in battery mode |
92% at 24VDC |
| Parallel operation |
Not supported (nameplate: NA) |
AC Input
| Rated AC input voltage |
208 / 220 / 230 / 240VAC |
| AC input voltage range |
90–280VAC (APP / GEN mode); 170–264VAC (UPS mode) |
| AC input frequency |
50 / 60Hz, auto-adaptive |
| Maximum AC bypass current |
20A |
Solar Input and Charging
| Solar charger |
MPPT |
| Maximum PV input power |
5000W |
| Maximum PV input current |
18A |
| MPPT operating voltage range |
40–450VDC |
| PV start-up voltage |
60VDC |
| Maximum PV open-circuit voltage |
500VDC |
| Maximum PV charging current |
100A |
| Maximum AC charging current |
100A |
| Maximum combined PV + AC charging current |
100A |
Battery
| Nominal battery voltage |
24VDC |
| Battery input voltage range |
20–30VDC (nameplate) |
| Supported battery types |
Lithium / lead-acid |
| BMS communication |
CAN / RS485 |
| Operation without battery |
Supported; available power depends on PV / AC input conditions |
General Data
| Display |
LCD |
| Communication interfaces |
RS485 / CAN / RS232 |
| Remote monitoring |
Wi-Fi (optional) |
| Ingress protection |
IP21 |
| Safety class |
Class I |
| Operating temperature |
−10°C to +60°C |
| Storage temperature |
−15°C to +60°C |
| Relative humidity |
5–95%, non-condensing |
| Maximum operating altitude |
4000m; derating above 2000m |
Weight and Packaging
| Net weight |
6.2kg |
| Gross weight |
7.3kg |
| Package dimensions (L × W × H) |
518 × 342 × 170mm (shipping package, not inverter dimensions) |
Package Contents
- 1 × inverter
- 1 × English datasheet
- 1 × English user manual
- 8 × E2510 tubular terminals for AC output, AC input and PV connections
- 1 × OT terminal for protective earth (PE)
Operating Notes
- The 3.6kW rating is the total inverter output, not 3.6kW per output. The 5000W specification refers to maximum PV input power.
- At a 208V output setting, rated output power is reduced to 90% (3.24kW).
- In battery-only operation, the datasheet derating curve shows 3000W at 21–24V and a rising output limit between 24V and 26V, reaching 3600W at 26V.
- For battery plus PV operation without AC input, the datasheet specifies two conditions for reaching 3.6kW: battery voltage at least 26V, or battery voltage at least 21V together with PV input power at least 900W. Output otherwise follows the battery voltage derating curve.
- Wi-Fi monitoring is optional. Solar panels, batteries and optional monitoring equipment are not listed in the standard packing list.
5kW 24V MPPT Solar Inverter | PV9000-24 S5.0
Model and Output
| Model |
PV9000-24 S5.0 |
| Rated inverter output |
5000VA / 5000W (5kW) |
| Maximum load with PV + battery |
5000W |
| Maximum battery-only load |
4000W at 25V; battery-voltage derating applies |
| AC output configuration |
Dual AC output is optional; configuration to be confirmed when ordering |
| Phase configuration |
Single phase (L + N + PE) |
| Output waveform |
Pure sine wave |
| Power factor |
1 |
| Selectable output voltage |
208 / 220 / 230 / 240VAC |
| Rated AC output voltage |
230VAC (nameplate) |
| Output frequency |
50 / 60Hz ±0.1% |
| Rated AC output current |
22A (nameplate) |
| Surge power |
10kVA |
| Transfer time |
10ms (APP / UPS mode); 20ms (GEN mode) |
| Overload capability in battery mode |
1 minute at 102–120% load; 10 seconds at 120–200% load |
| Maximum efficiency in battery mode |
93.5% at 24VDC |
| Parallel operation |
Not supported (nameplate: NA) |
AC Input
| Rated AC input voltage |
208 / 220 / 230 / 240VAC |
| AC input voltage range |
90–280VAC (APP / GEN mode); 170–264VAC (UPS mode) |
| AC input frequency |
50 / 60Hz, auto-adaptive |
| Maximum AC bypass current |
40A at 25°C |
Solar Input and Charging
| Solar charger |
MPPT |
| Maximum PV input power |
9000W |
| Maximum PV input current |
27A |
| MPPT operating voltage range |
60–450VDC |
| PV start-up voltage |
80VDC |
| Maximum PV open-circuit voltage |
500VDC |
| Maximum PV charging current |
160A |
| Maximum AC charging current |
160A |
| Maximum combined PV + AC charging current |
160A |
Battery
| Nominal battery voltage |
24VDC |
| Battery input voltage range |
20–30VDC (nameplate) |
| Supported battery types |
Lithium / lead-acid |
| BMS communication |
CAN / RS485 |
| Operation without battery |
Supported; output depends on available PV / AC input |
General Data
| Display |
LCD |
| Communication interfaces |
RS485 / CAN / RS232 |
| Remote monitoring |
Wi-Fi (optional) |
| Ingress protection |
IP21 |
| Safety class |
Class I |
| Operating temperature |
−10°C to +60°C |
| Storage temperature |
−15°C to +60°C |
| Relative humidity |
5–95%, non-condensing |
| Maximum operating altitude |
4000m; derating above 2000m |
Weight and Packaging
| Net weight |
8.4kg |
| Gross weight |
9.5kg |
| Package dimensions (L × W × H) |
490 × 394 × 176mm (shipping package, not inverter dimensions) |
Package Contents
- 1 × inverter
- 1 × English datasheet
- 1 × English user manual
- 10 × E6010 tubular terminals for AC input, AC output and PV input
- 1 × OT terminal for protective earth (PE)
Operating Notes
- The rated inverter output is 5kW. The 9000W value is maximum PV input power, not AC output power.
- Battery-only operation is limited by battery voltage. The datasheet curve shows approximately 3.3kW at 20V, rising to 4kW at 25V and remaining at 4kW up to 30V. The specified maximum with PV plus battery is 5kW.
- At a 208V output setting, rated output power is reduced to 90% (4.5kW); the battery-only limitation still applies.
- Wi-Fi remote monitoring and dual AC output are optional; confirm the required configuration when ordering.
- Solar panels, batteries and optional monitoring equipment are not listed in the standard packing list.

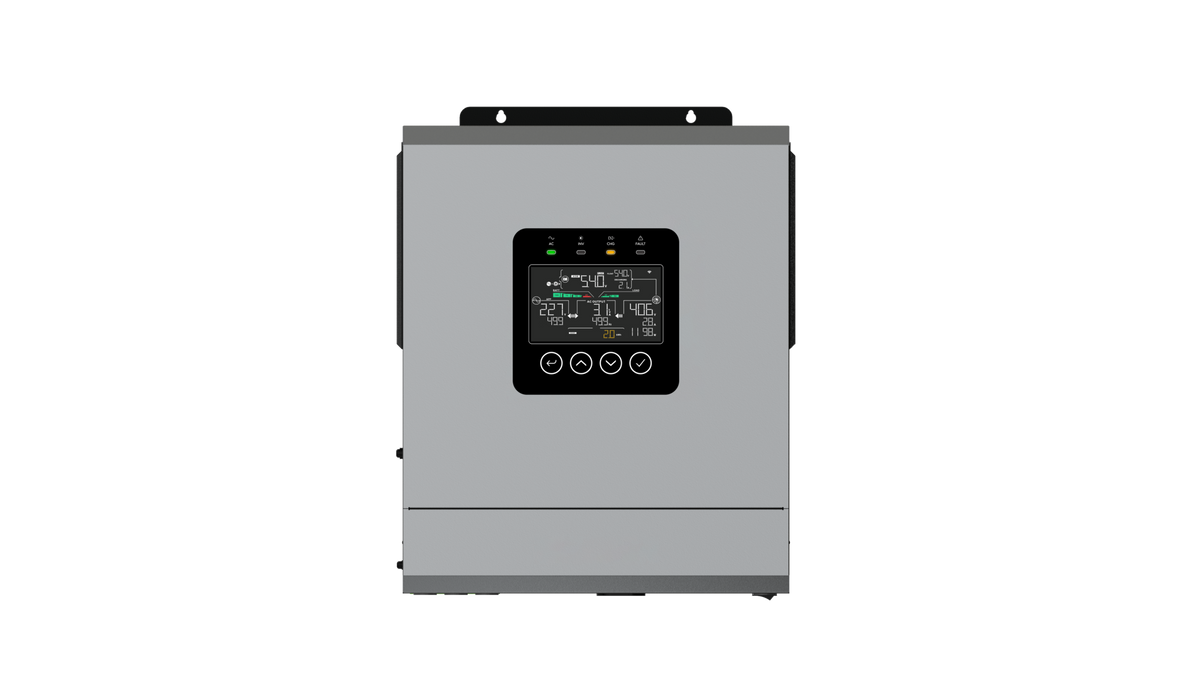

6.5kW 48V Parallel MPPT Solar Inverter | PV9000-48 P6.5
Model and Output
| Model |
PV9000-48 P6.5 |
| Rated inverter output |
6500VA / 6500W (6.5kW total) |
| Maximum load with PV + battery |
6500W |
| Battery-only load at 50V |
6000W; battery-voltage derating applies |
| AC outputs |
2 |
| Phase configuration per inverter |
Single phase (L + N + PE) |
| Output waveform |
Pure sine wave |
| Power factor |
1 |
| Selectable output voltage |
208 / 220 / 230 / 240VAC |
| Rated AC output voltage |
230VAC (nameplate) |
| Output frequency |
50 / 60Hz ±0.1% |
| Rated AC output current |
28.3A (nameplate) |
| Surge power |
12kVA |
| Transfer time |
10ms (APP / UPS mode); 20ms (GEN mode) |
| Overload capability in PV + battery / PV mode |
1 minute at 102–120% load; 10 seconds at 120–200% load |
| Maximum efficiency in battery mode |
94% at 48VDC |
Parallel Operation
| Maximum parallel quantity |
9 inverters |
| Single-phase parallel configuration |
2–9 inverters |
| Three-phase configuration |
3–9 inverters total; at least 1 inverter per phase, up to 7 on one phase |
| Output derating in parallel mode |
Rated output reduced to 95% |
| Parallel communication |
Dedicated parallel ports |
| Parallel operation without battery and grid |
Supported by the manual; AC output is derated |
AC Input
| Rated AC input voltage |
208 / 220 / 230 / 240VAC |
| AC input voltage range |
90–280VAC (APP / GEN mode); 170–264VAC (UPS mode) |
| AC input frequency |
50 / 60Hz, auto-adaptive |
| Maximum AC bypass current |
40A at 25°C |
Solar Input and Charging
| Solar charger |
MPPT |
| Maximum PV input power |
9000W |
| Maximum PV input current |
27A |
| MPPT operating voltage range |
60–450VDC |
| PV start-up voltage |
80VDC |
| Maximum PV open-circuit voltage |
500VDC |
| Maximum PV charging current |
120A |
| Maximum AC charging current |
120A |
| Maximum combined PV + AC charging current |
120A |
Battery
| Nominal battery voltage |
48VDC |
| Battery input voltage range |
40–60VDC (nameplate) |
| Supported battery types |
Lithium / lead-acid |
| BMS communication |
CAN / RS485 |
| Operation without battery |
Supported; available output depends on operating conditions |
General Data
| Display |
LCD |
| Communication interfaces |
RS485 / CAN / RS232 / parallel ports |
| Remote monitoring |
Wi-Fi (optional) |
| Ingress protection |
IP21 |
| Safety class |
Class I |
| Operating temperature |
−10°C to +60°C |
| Storage temperature |
−15°C to +60°C |
| Relative humidity |
5–95%, non-condensing |
| Maximum operating altitude |
4000m; derating above 2000m |
Weight and Packaging
| Net weight |
8.4kg |
| Gross weight |
9.5kg |
| Package dimensions (L × W × H) |
490 × 394 × 176mm (shipping package, not inverter dimensions) |
Package Contents
- 1 × inverter
- 1 × English datasheet
- 1 × English user manual
- 10 × E6010 tubular terminals for AC input, AC output and PV input
- 1 × OT terminal for protective earth (PE)
- 1 × Ethernet cable for parallel communication
Operating Notes
- The 6.5kW rating is total inverter output, not 6.5kW per AC output. The 9000W specification refers to maximum PV input power.
- Battery-only output depends on battery voltage. The datasheet lists 6000W at 50V; its derating curve reaches 6500W at approximately 55V. The specified maximum load with PV plus battery is 6500W.
- At a 208V output setting, rated output is reduced to 90%. In parallel mode, rated output is reduced to 95%. Battery voltage and operating conditions can further limit available output.
- A single inverter is single-phase. Three-phase operation requires at least three inverters, with at least one inverter assigned to each phase; a maximum of nine inverters can be used in total.
- In a parallel system with batteries, all inverters must connect to the same battery bank. Each inverter requires a separate PV connection; do not connect one PV string to multiple inverters.
- Wi-Fi monitoring is optional. Solar panels, batteries and optional monitoring equipment are not listed in the standard packing list.
12kW 48V Dual-MPPT Solar Inverter | PV15000-48 S12.0
Model and Output
| Model |
PV15000-48 S12.0 |
| Rated inverter output |
12000VA / 12000W (12kW total) |
| Maximum load with PV + battery |
12000W |
| Maximum battery-only load |
10000W at 50V; battery-voltage derating applies |
| AC outputs |
2 |
| Maximum AC output 1 current |
70A |
| Maximum AC output 2 current |
40A |
| Phase configuration |
Single phase (L + N + PE) |
| Output waveform |
Pure sine wave |
| Power factor |
1 |
| Selectable output voltage |
220 / 230 / 240VAC |
| Rated AC output voltage |
230VAC (nameplate) |
| Output frequency |
50 / 60Hz ±0.1% |
| Rated AC output current |
52.2A (nameplate) |
| Surge power |
24kVA |
| Transfer time |
10ms (APP / UPS mode); 20ms (GEN mode) |
| Overload capability in PV + battery / PV mode |
1 minute at 102–125% load; 10 seconds at 125–200% load |
| Maximum efficiency in battery mode |
94% at 48VDC |
| Parallel operation |
Not supported (nameplate: NA) |
AC Input
| Rated AC input voltage |
220 / 230 / 240VAC |
| AC input voltage range |
90–280VAC (APP / GEN mode); 170–264VAC (UPS mode) |
| AC input frequency |
50 / 60Hz, auto-adaptive |
| Maximum AC bypass current |
70A at 25°C |
Solar Input and Charging
| Solar charger |
Dual MPPT |
| PV inputs |
2 |
| Maximum PV input power, both inputs combined |
15000W total |
| Maximum power with a single PV input |
9000W |
| Maximum PV input current |
27A per input; 27A + 27A with dual PV inputs |
| MPPT operating voltage range |
60–450VDC |
| PV start-up voltage |
80VDC |
| Maximum PV open-circuit voltage |
500VDC |
| Maximum PV charging current |
160A |
| Maximum AC charging current |
160A |
| Maximum combined PV + AC charging current |
160A |
Battery
| Nominal battery voltage |
48VDC |
| Battery input voltage range |
40–60VDC (nameplate) |
| Supported battery types |
Lithium / lead-acid |
| BMS communication |
CAN / RS485 |
| Operation without battery |
Supported; available output depends on PV / AC input conditions |
General Data
| Display |
LCD |
| Communication interfaces |
RS232 / RS485 / CAN |
| Remote monitoring |
Wi-Fi (optional) |
| Ingress protection |
IP21 |
| Safety class |
Class I |
| Operating temperature |
−10°C to +60°C |
| Storage temperature |
−15°C to +60°C |
| Relative humidity |
5–95%, non-condensing |
| Maximum operating altitude |
4000m; derating above 2000m |
Weight and Packaging
| Net weight |
14.9kg |
| Gross weight |
16.5kg |
| Package dimensions (L × W × H) |
594 × 500 × 210mm (shipping package, not inverter dimensions) |
Package Contents
- 1 × inverter
- 1 × English datasheet
- 1 × English user manual
- 4 × tubular terminals for AC input and AC output 1
- 6 × tubular terminals for PV input and AC output 2
- 1 × OT terminal for protective earth (PE)
Operating Notes
- The 12kW rating is total inverter output, not 12kW per AC output. The 70A and 40A values are the specified maximum currents for AC output 1 and AC output 2, not separate continuous inverter power ratings.
- The maximum combined PV input is 15000W. With only one PV input connected, the specified maximum is 9000W. Two connected PV inputs do not increase the combined limit to 18000W.
- Battery-only output is limited by battery voltage. The datasheet curve shows approximately 8400W at 42V, rising to 10000W at 50V and remaining at 10000W up to 60V. The specified maximum with battery plus PV is 12000W.
- This S12.0 model does not support inverter paralleling according to the product nameplate.
- Wi-Fi monitoring is optional. Solar panels, batteries and optional monitoring equipment are not listed in the standard packing list.
Solar panels and batteries are not included in the standard inverter packing lists. Optional accessories and output configurations should be confirmed when ordering.
